SECORIS WIRED AND HYBRID ALARM SYSTEMS – COMPONENTS – Asia Cash Management Systems Co., Ltd. (ACMS)

Tailored hybrid alarm systems for commercial projects.

With the large selection of components, the Secoris offers customized protection for your commercial property. Ideal for new buildings, it is the most powerful alarm system from ABUS.

Components

Part# ESEZ60500

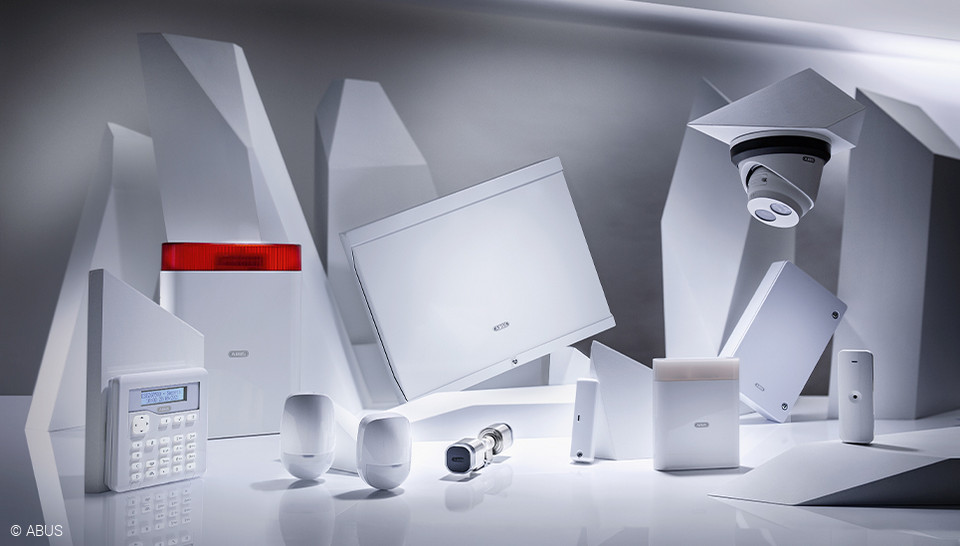

ABUS Secoris – the alarm system for the reliable protection of offices and commercial properties
Powerful alarm system for reliable operation, precise alarm and flexible setup, ideal for professional security of office and commercial properties, certified quality according to EN grade 2
Extensive protection for individual requirements with up to 200 individually identifiable detector groups and a total of 50 BUS components (e.g. control panels, expansion modules, etc.), flexible operation for 200 users in up to 20 sub-areas
Convenient operation and arming/disarming via control panel or app (Android/iOS) including push notifications in the event of an alarm, status change (arming/disarming), sabotage and system errors
Compatible with ABUS access control systems, digital locking systems and electronic door locks/locking cylinders (ABUS WLX Pro/Pro Plus)
Integration of up to 10 ABUS IP cameras to verify events (e.g. alarm)
Secure, fast alarming possible through direct connection to an emergency call center
Redundancy in the control center communication via additional modules (fixed network, 4G) can be implemented if required
Optimum service package of future-oriented IP technology with app, BUS and wired components as well as remote maintenance and cloud-based services (ABUS specialist partners)
EN 50131-1 Grade 2 certified

**SECORIS BUS WIRE DETECTOR GROUP EXTENSION**

Part# BUMO60010

Extension of the Secoris alarm center by up to 10 wire detector groups for the integration of further detector groups and components
Connection to the alarm center via BUS line, flexibly from anywhere in the building
For decentralized wiring of the detectors without laying individual lines to the control panel
Compatible with a large number of wired detectors (e.g. on-site opening detectors, glass breakage detectors)
Up to 50 BUS components (including extensions) per Secoris control panel

Part# BUMO60100

Additional power pack with emergency power supply (integrated battery)
For larger installations and using the maximum cable lengths, the external power supply offers extra performance
Can be used for the power supply for the safe operation of the alarm system in the event of malfunctions (e.g. cut main line).
Provides up to 10 additional wired zones/detector lines
EN 50131-1 Grade 3 certified

Part# ESMO60010

Data transmission and communication via the telephone network: Send alarm and status messages as a voice message or SMS to a telephone/smartphone or as a log message to an emergency call center
Guarantees a second secure transmission path in the event of a network connection failure
For connecting the alarm center to the PSTN interface of the telephone system or the main connection
Transmission of control center-based protocols (FF, SIA, CID) for alarm switching to an emergency and service control center

Part# AZMO60000

The relay board expands the alarm center by 8 high-performance relay switching outputs
Additional options for the alarm system to react accurately to predefined events (alarm, fire, robbery) (e.g. external siren goes off, roller shutter goes up, light goes on)
Enables actuators to be switched to control smart home scenarios and forms an interface to building automation
Switching capacity of the relay 1 A each (30 V DC/120 V AC)

Part# AZMO60010

The relay board expands the alarm center by 4 powerful relay switching outputs
Additional options for the alarm system to react accurately to predefined events (alarm, fire, robbery) (e.g. external siren goes off, roller shutter goes up, light goes on)
Enables actuators to be switched to control smart home scenarios and forms an interface to building automation
Switching capacity of the relay 1 A each (30 V DC/120 V AC)

Part# BUBE60000

Control panel with keyboard for indoor use
For convenient arming/disarming of the panel using a PIN code when leaving/entering the building
Individually adjustable brightness of the backlight
Switching of sub-areas possible, e.g. B. separate departments
Voltage supply possible via the BUS line of the control panel or an external power pack
Colored LEDs to indicate the current system status
Up to 50 control panels per Secoris system/control panel possible
EN 50131-1 Grade 3 certified

Part# AZSG10001

Robust, weatherproof outdoor siren
Sound pressure of 100 dB(A) @ 1 m
Adjustable siren time and signal
LED flash technology
Flash can be mounted upwards or downwards
Degree of protection: IP43

Part# AZSG10011

Robust, weatherproof outdoor siren
Sound pressure of 100 dB(A) @ 1 m
Adjustable siren time and signal
LED flash technology
Flash can be mounted upwards or downwards
Degree of protection: IP43

Part# AZSG10006

Robust, weatherproof outdoor siren
Sound pressure of 100 dB(A) @ 1 m
Adjustable siren time and signal
LED flash technology
Flash can be mounted upwards or downwards
Degree of protection: IP43

Part# AZSG10020

Arm/disarm indicator LED
Simple, unobtrusive design
easy installation
Sound pressure 90 dB (A) @ 1m
Front and rear tamper detection
Impact-resistant polycarbonate construction

**WIRED COMBINED SIGNALING DEVICE OPTICAL/ACOUSTIC**

Part# SG1650

Robust siren in aluminum housing
Siren and flash can be controlled separately
Extremely loud 110 dB (A) @ 1m
Tamper monitored

Part# ESMO50000

Additional module for alternative or redundant voice and data transmission from or to the Secvest wireless alarm system
Data transmission and communication via the mobile network
GSM and LTE capable (2G and 4G)
Secure transmission in the event of a failure of the analogue telephone network
Ideal for apartments and properties without a landline connection
Transmission of voice messages, control center logs, push and SMS messages

Part# AZBW10110

Passive Infrared (PIR) motion detector for indoor use
Detects thermal movement of people
Optional animal immunity (PET): Insensitive to animals up to approx. 15 kg
Monitors entire rooms (detection area approx. 16 x 16 m)
High level of security: no blind spots thanks to creep protection
EN grade 2 certification

Part# AZBW10120

Indoor passive infrared (PIR) motion detector with microwave (MW) element
Dual detector: PIR sensor and MW sensor combined in one detector
Preventive protection against false alarms due to double detection
Optional animal immunity (PET): Insensitive to animals up to approx. 15 kg
Monitors entire rooms (detection area approx. 12 x 12 m)
High level of security: no blind spots thanks to creep protection
EN grade 2 certification

Part# SE1000

Activate and deactivate with the turn of a key
For surface mounting
High level of security thanks to core pull protection as well as cover and wall sabotage switches
Robust housing
Designed for half cylinder (10/30) (half cylinder is not included)

Part# SE1100

Activate and deactivate with the turn of a key
For flush mounting
High level of security thanks to core pull protection and cover tamper switch
Robust housing
Designed for half cylinder (10/30) (half cylinder is not included)

Part# AZEM10000

Innovative vibration detector for wooden doors, glass and plaster walls, safes, showcases, etc.
Detects any type of vibration, e.g. B. be triggered by breaking, prying, breaking through or moving
Optimized digital filter to block out background noise
Adjustable sensitivity with direct triggering in the event of gross violence
Reliable early detection of attempted break-ins

Part# AZGB10000

Wire detector for protecting glass surfaces and window fronts
Reliable, acoustic detection of broken glass
Detection range: up to 8 m, depending on the type and thickness of the glass pane
Monitoring of entire window fronts and conservatories with just one detector
Distinguishes between shattering window panes and everyday noises (drinking glasses, ball against the pane, etc.)
EN Grade 2 certified
